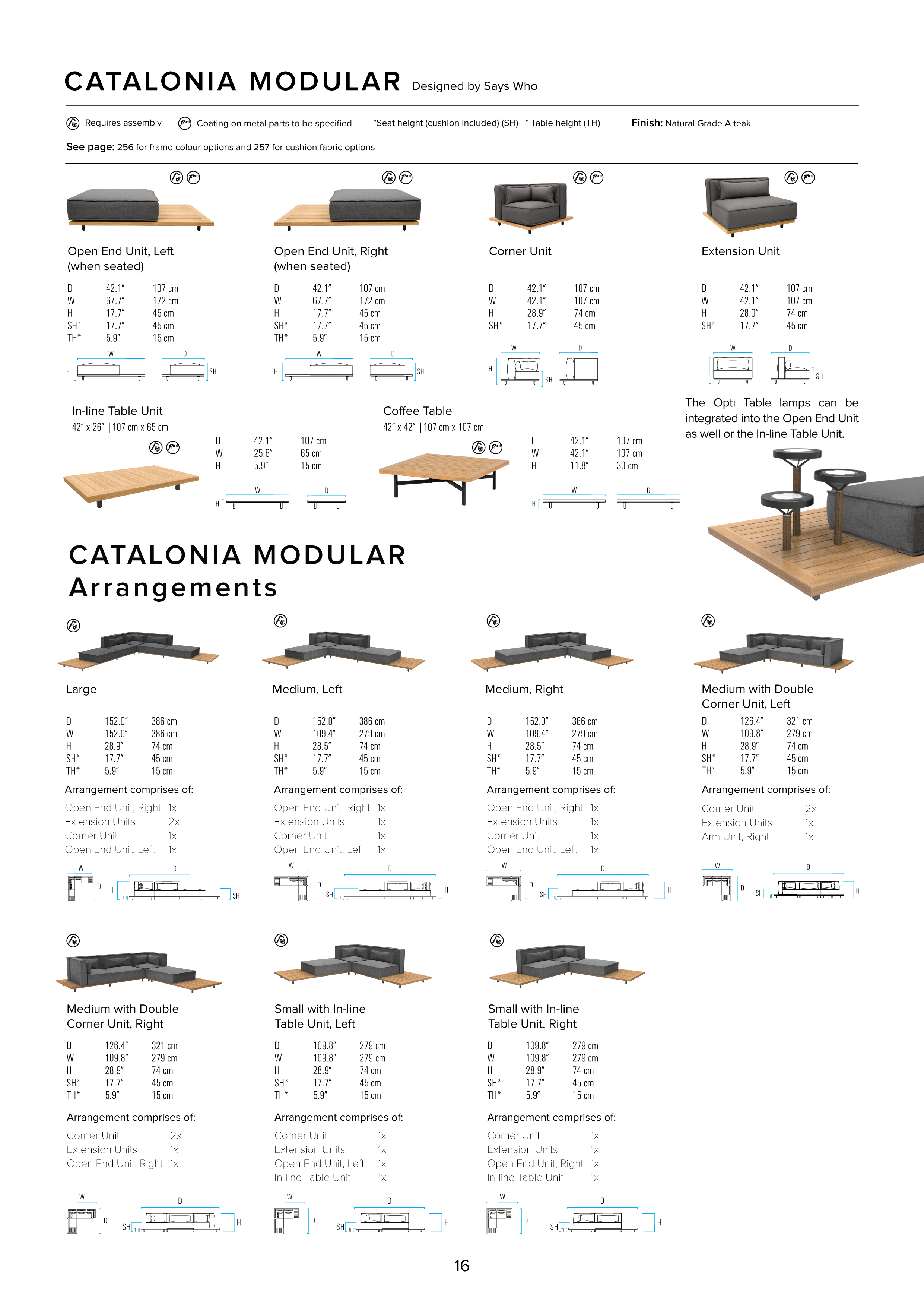

CATALONIA MODULAR Designed by Says Who

Requires assembly Coating on metal parts to be specified *Seat height (cushion included) (SH) * Table height (TH) Finish: Natural Grade A teak
See page: 256 for frame colour options and 257 for cushion fabric options

Open End Unit, Left Open End Unit, Right Corner Unit Extension Unit
(when seated) (when seated)
D 42.1” 107 cm D 42.1” 107 cm D 42.1” 107 cm D 42.1” 107 cm
W 67.7” 172 cm W 67.7” 172 cm W 42.1” 107 cm W 42.1” 107 cm
H 17.7” 45 cm H 17.7” 45 cm H 28.9” 74 cm H 28.0” 74 cm
SH* 17.7” 45 cm SH* 17.7” 45 cm SH* 17.7” 45 cm SH* 17.7” 45 cm
TH* 5.9” 15 cm TH* 5.9” 15 cm
W D W D
W D W D
H
H SH H SH H SH
SH
The Opti Table lamps can be
In-line Table Unit Co ee Table integrated into the Open End Unit
42” x 26” |107 cm x 65 cm 42” x 42” |107 cm x 107 cm
D 42.1” 107 cm L 42.1” 107 cm as well or the In-line Table Unit.
W 25.6” 65 cm W 42.1” 107 cm
H 5.9” 15 cm H 11.8” 30 cm
W D W D
H H

CATALONIA MODULAR
Arrangements

Large Medium, Left Medium, Right Medium with Double
Corner Unit, Left
D 152.0” 386 cm D 152.0” 386 cm D 152.0” 386 cm D 126.4” 321 cm
W 152.0” 386 cm W 109.4” 279 cm W 109.4” 279 cm W 109.8” 279 cm
H 28.9” 74 cm H 28.5” 74 cm H 28.5” 74 cm H 28.9” 74 cm
SH* 17.7” 45 cm SH* 17.7” 45 cm SH* 17.7” 45 cm SH* 17.7” 45 cm
TH* 5.9” 15 cm TH* 5.9” 15 cm TH* 5.9” 15 cm TH* 5.9” 15 cm
Arrangement comprises of: Arrangement comprises of: Arrangement comprises of: Arrangement comprises of:
Open End Unit, Right 1x Open End Unit, Right 1x Open End Unit, Right 1x Corner Unit 2x
Extension Units 2x Extension Units 1x Extension Units 1x Extension Units 1x
Corner Unit 1x Corner Unit 1x Corner Unit 1x Arm Unit, Right 1x
Open End Unit, Left 1x Open End Unit, Left 1x Open End Unit, Left 1x
W D W D W D W D
D H D H D H D SH H
TH SH SH TH SH TH TH

Medium with Double Small with In-line Small with In-line
Corner Unit, Right Table Unit, Left Table Unit, Right
D 126.4” 321 cm D 109.8” 279 cm D 109.8” 279 cm
W 109.8” 279 cm W 109.8” 279 cm W 109.8” 279 cm
H 28.9” 74 cm H 28.9” 74 cm H 28.9” 74 cm
SH* 17.7” 45 cm SH* 17.7” 45 cm SH* 17.7” 45 cm
TH* 5.9” 15 cm TH* 5.9” 15 cm TH* 5.9” 15 cm
Arrangement comprises of: Arrangement comprises of: Arrangement comprises of:
Corner Unit 2x Corner Unit 1x Corner Unit 1x
Extension Units 1x Extension Units 1x Extension Units 1x
Open End Unit, Right 1x Open End Unit, Left 1x Open End Unit, Right 1x
In-line Table Unit 1x In-line Table Unit 1x
W D W D W D
D H D H D H
SH TH SH TH SH TH
